The Ace Equipment Company line of self-contained compactors – featuring a one-piece, no-splice floor – are no exception to our BUILT TUFF / BUILT RIGHT philosophy. Our design centers around reducing maintenance costs, which means putting more money in your pocket. At Ace Equipment Company, we’re the only manufacturer offering the single-piece floor, eliminating the chance of corrosion and leaks that plague competitors’ spliced-floor offerings. Ace US-made cylinders feature a 0.002% failure rate – and our US-made Baldor™ motors are the best money can buy. These machines can handle anything you throw at them, including wet or dry waste. Custom sizes from 6 yards to 39 yards make Ace Equipment self-contained compactors the most versatile compactor on the market. If you need something special, simply call us and we’ll be happy to accommodate your request with a level of quality and reliability no other manufacturer can touch.
Perfect for:
Grocery Stores
Universities
Hospitals
Factories
Casinos / Hotels
FEATURES
No Limit Switches
Slot & Tab Construction
3/16″ Sidewalls STANDARD
1″ Rail Liner STANDARD
American-Made Hydraulic Cylinders
American-Made Electric Motors
American-Made Steel
BENEFITS
One-piece Seamless Floor, Sides and Door are Constructed of 3/16” Steel to Remove the Possibility of Leaks
Our 1” Rail Liner is Twice as Thick as Our Next Competitor for Longevity and Durability
We Can Custom Build 60” to 99” Wide and 15 Yard to 39-Yard Sizes
Compare Our Patent Pending Heavy-Duty Door Latch With Any Competitor’s Product On The Market
The strength of the our Self-Contained Compactors revolves around the quality American-made components we use in conjunction with the manufacturing accuracy we achieve with robotic welders and laser-precision slot & tab assembly. Click on the Service Cost Calculator above to see just how much you can save over the life of your compactor. Simply enter the values that you’re currently spending on maintenance.
SPECIFICATIONS & DIMENSIONS

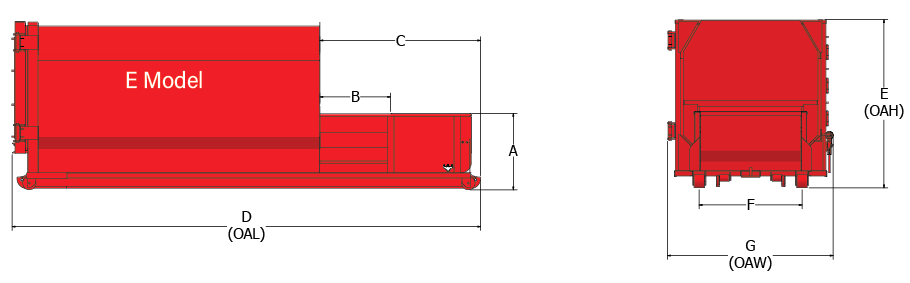

E MODEL SELF-CONTAINED COMPACTORS
E-Model
15 CU YD
20 CU YD
25 CU YD
30 CU YD
A
45-1/2″
45-1/2″
45-1/2″
45-1/2″
B
40″
40″
40″
40″
C
96″
96″
96″
96″
D
207″
230″
254″
278″
E
100″
100″
100″
100″
F
61″
61″
61″
61″
G
98″
98″
98″
98″
Weight
8,700 lbs.
9,200 lbs.
9,700 lbs.
10,200 lbs.

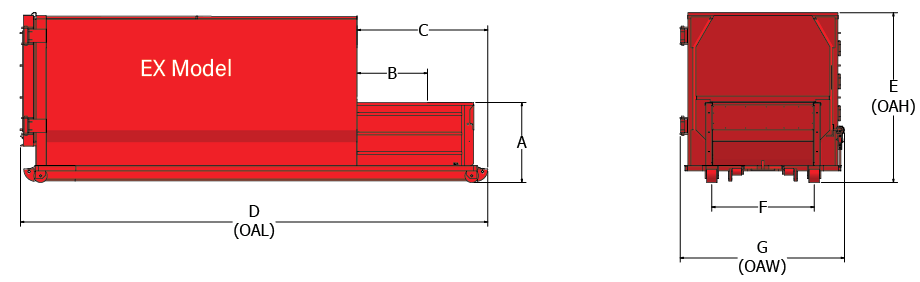

EX-MODEL SELF-CONTAINED COMPACTORS
EX-Model
15 CU YD
20 CU YD
25 CU YD
30 CU YD
34 CU YD
39 CU YD
A
48″
48″
48″
48″
48″
48″
B
41-1/2″
41-1/2″
41-1/2″
41-1/2″
41-1/2″
41-1/2″
C
78″
78″
78″
78″
78″
78″
D
171″
208″
214″
245″
278″
300″
E
100″
100″
100″
100″
100″
100″
F
61″
61″
61″
61″
61″
61″
G
98″
98″
98″
98″
98″
98″
Weight
9,100 lbs.
9,700 lbs.
10,100lbs.
10,900lbs.
11,400lbs.
12,000lbs.

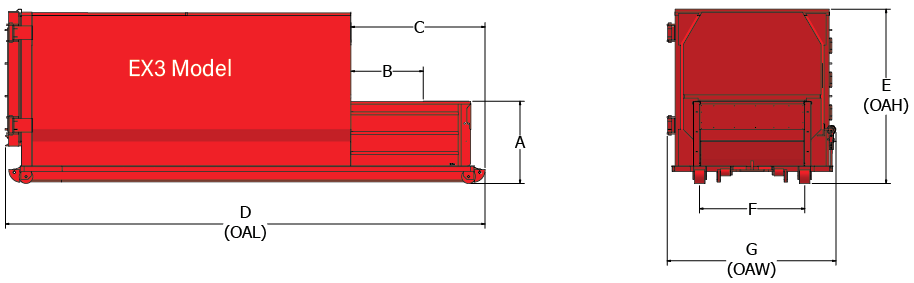

EX3 MODEL SELF-CONTAINED COMPACTORS
EX-3 Model
15 CU YD
20 CU YD
25 CU YD
30 CU YD
A
48″
48″
48″
48″
B
60″
60″
60″
60″
C
102″
102″
102″
102″
D
207″
230″
254″
278″
E
100″
100″
100″
100″
F
61″
61″
61″
61″
G
98″
98″
98″
98″
Weight
9,300 lbs.
9,900 lbs.
10,300 lbs.
11,200 lbs.
See something you like? Hit the button below and let’s start the discussion!
