A Smart Alternative to Vertical Compactors
Before selecting a traditional vertical compactor, take a closer look at the Ace 6-PAK. Its small footprint, user-friendly loading height, and straightforward installation make it an attractive alternative for locations where space, accessibility, and operational efficiency matter.

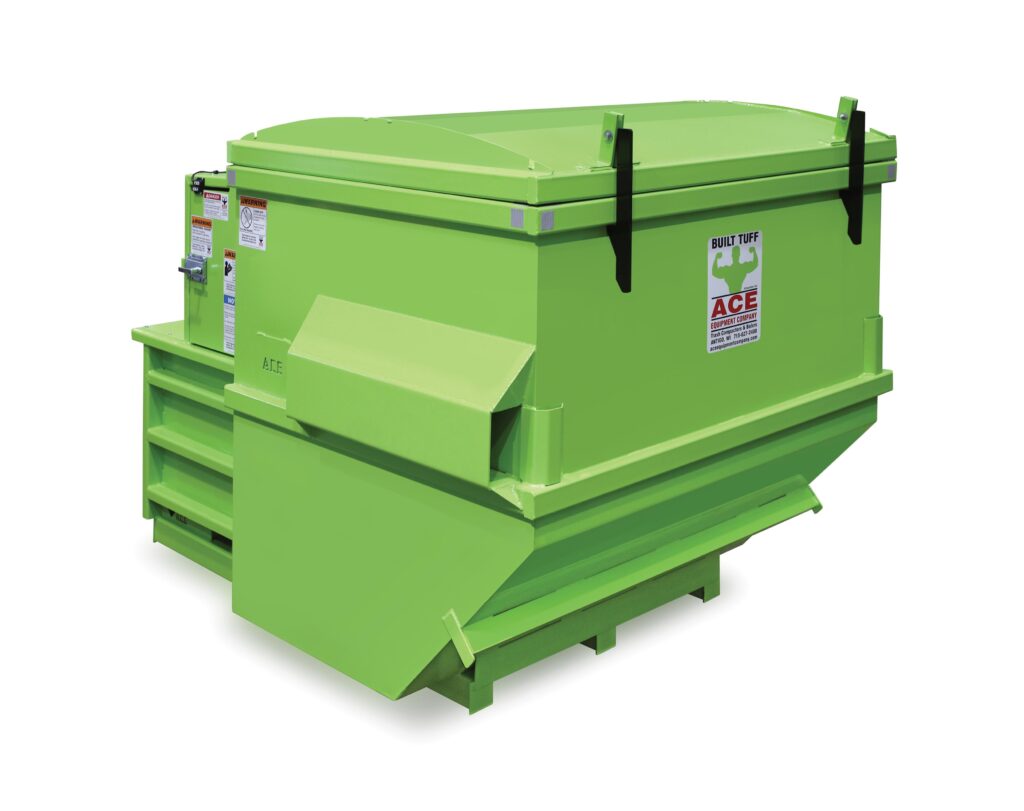

Our 6-PAK Self-Contained Compactors, available for both front-load and rear-load refuse vehicles, are the perfect solution for companies who produce small-to-moderate amounts of trash. The 6-PAK is made 100% liquid tight to handle whatever kind of waste is thrown at it. This versatile compactor can be placed virtually anywhere and features an optional guide system that ensures exact placement every time. Common applications are doghouses with lockable doors, and through-the-wall chute-feed applications.
With a low sill height of only 32″ – it’s designed for ease of use. A standard 7-guage steel floor ensures against deteriorating floors – while the gravity-fed lid locks empty without having to be unlocked – and then lock automatically when the container is returned to the ground.
Perfect for:
DIMENSIONS AND SPECIFICATIONS
Front-Load Dimensions

Rear-Load Dimensions

4-Pak Dimensions

| 6-PAK SPECS | 4-PAK FL | 6-PAK FL | 6-PAK RL |
|---|---|---|---|
| CLEAR TOP (L x W) | 24″ x 48″ | 24″ x 48″ | 24″ x 48″ |
| CAPACITY | .5 cu. yd | .5 cu. yd | .5 cu. yd |
| RAM FACE SIZE | 20 1/4″ x 47 3/8″ | 20 1/4″ x 47 3/8″ | 20 1/4″ x 47 3/8″ |
| COMPACTOR WEIGHT | 2,950 lbs. | 3,250 lbs. | 3,500 lbs. |
| CYCLE TIME | 22 sec. | 22 sec. | 22 sec. |
| TOTAL NORMAL FORCE | 17,672 lbs. | 17,672 lbs. | 17,672 lbs. |
| NORMAL RAM FACE PRESSURE | 18.4 psi | 18.4 psi | 18.4 psi |
| RAM PENETRATION | 5 1/4″ | 5 1/4″ | 5 1/4″ |
| ELECTRIC MOTOR | 3 hp | 3 hp | 3 hp |
| ELECTRIC CONTROL VOLTAGE | 120 VAC | 120 VAC | 120 VAC |
| STANDARD CONTROLS | 2-Push Button Station Start/Stop | 2-Push Button Station Start/Stop | 2-Push Button Station Start/Stop |
| HYDRAULIC PUMP CAPACITY | 3.8 gpm | 3.8 gpm | 3.8 gpm |
| NORMAL PRESSURE | 2,100 psi | 2,100 psi | 2,100 psi |
| HYDRAULIC CYLINDERS | 2 | 2 | 2 |
| BORE | 2.5″ | 2.5″ | 2.5″ |
| ROD | 1.25″ | 1.25″ | 1.25″ |
